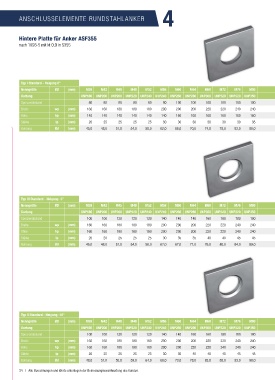

Page 34 - ASF Katalog 2018 de

4

ANSCHLUSSELEMENTE RUNDSTAHLANKER

Hintere Platte für Anker ASF355
nach 1993-5 mit kt 0,9 in S355

Typ I Standard - Neigung 0°
Nenngröße ØD (mm) M39 M42 M45 M48 M52 M56 M60 M64 M68 M72 M76 M80 M85 M90 M95 M100 M105 M110 M115 M120 M125 M130 M135 M140 M145 M150 M155 M160
Gurtung UNP180 UNP200 UNP200 UNP220 UNP240 UNP240 UNP260 UNP280 UNP300 UNP320 UNP320 UNP350 UNP380 UNP400 UNP400 HEB340 HEB360 HEB400 HEB450 HEB450 HEB500 HEB550 HEB550 HEB600 HEB600 HEB650 HEB650 HEB700
Spreizenabstand 80 80 80 80 80 80 100 100 100 100 100 100 120 120 120 140 140 140 140 140 160 160 160 160 180 180 180 180
Breite wp (mm) 160 160 180 180 180 200 200 200 220 220 240 240 240 260 280 280 280 280 300 320 340 340 340 360 360 380 380 400
Höhe hp (mm) 140 140 140 140 140 140 160 160 160 160 160 160 180 180 180 200 200 200 200 200 220 220 220 220 240 240 240 240
Stärke tp (mm) 20 25 25 25 25 30 30 30 30 30 30 35 40 40 45 45 45 45 45 50 50 55 55 55 60 60 65 65
Bohrung Ød (mm) 45,0 48,0 51,0 54,0 58,0 62,0 66,0 70,0 74,0 78,0 82,0 86,0 91,0 96,0 101,0 106,0 111,0 116,0 121,0 126,0 131,0 136,0 141,0 146,0 151,0 156,0 161,0 166,0

Typ III Standard - Neigung -5°
Nenngröße ØD (mm) M39 M42 M45 M48 M52 M56 M60 M64 M68 M72 M76 M80 M85 M90 M95 M100 M105 M110 M115 M120 M125 M130 M135 M140 M145 M150 M155 M160
Gurtung UNP180 UNP200 UNP200 UNP220 UNP240 UNP240 UNP260 UNP280 UNP300 UNP320 UNP320 UNP350 UNP380 UNP400 UNP400 HEB340 HEB360 HEB400 HEB450 HEB450 HEB500 HEB550 HEB550 HEB600 HEB600 HEB650 HEB650 HEB700
Spreizenabstand 100 100 120 120 120 140 140 140 160 160 180 180 180 200 220 220 220 220 240 260 280 280 280 300 300 320 320 340
Breite wp (mm) 160 160 180 180 180 200 200 200 220 220 240 240 240 260 280 280 280 280 300 320 340 340 340 360 360 380 380 400
Höhe hp (mm) 160 160 180 180 180 200 200 200 220 220 240 240 240 260 280 280 280 280 300 320 340 340 340 360 360 380 380 400
Stärke tp (mm) 20 20 25 25 25 30 35 35 40 40 45 45 50 50 55 60 65 65 70 75 80 85 90 95 95 100 105 110
Bohrung Ød (mm) 45,0 48,0 51,0 54,0 58,0 62,0 67,0 71,0 76,0 80,0 84,0 89,0 94,0 100,0 105,0 111,0 116,0 122,0 128,0 133,0 139,0 144,0 150,0 155,0 161,0 166,0 172,0 177,0

Typ II Standard - Neigung -10°
Nenngröße ØD (mm) M39 M42 M45 M48 M52 M56 M60 M64 M68 M72 M76 M80 M85 M90 M95 M100 M105 M110 M115 M120 M125 M130 M135 M140 M145 M150 M155 M160
Gurtung UNP180 UNP200 UNP200 UNP220 UNP240 UNP240 UNP260 UNP280 UNP300 UNP320 UNP320 UNP350 UNP380 UNP400 UNP400 HEB340 HEB360 HEB400 HEB450 HEB450 HEB500 HEB550 HEB550 HEB600 HEB600 HEB650 HEB650 HEB700
Spreizenabstand 100 100 120 120 120 140 140 160 160 180 180 180 200 220 220 220 240 260 270 280 300 310 330 340 360 380 400 420
Breite wp (mm) 160 160 180 180 180 200 200 200 220 220 240 240 240 260 280 280 280 280 300 320 340 340 340 360 360 380 380 400
Höhe hp (mm) 160 160 180 180 180 200 200 220 220 240 240 240 260 280 280 280 300 320 330 340 360 370 390 400 420 440 460 480
Stärke tp (mm) 20 25 25 25 25 30 35 40 40 45 45 45 55 55 55 60 70 70 75 80 85 90 100 105 105 110 120 125
Bohrung Ød (mm) 48,0 51,0 55,0 59,0 64,0 68,0 73,0 78,0 83,0 88,0 93,0 98,0 104,0 110,0 116,0 122,0 128,0 134,0 140,0 146,0 152,0 158,0 164,0 170,0 176,0 182,0 188,0 195,0

34 | Alle Berechnungen und Werte unterliegen der Bemessungsverantwortung des Kunden.
