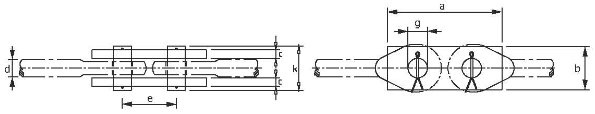

Laschengelenke Typ II M39

Nenndurchmesser:
M39
Plattenlänge (a) / mm:
220
Plattenhöhe (b) / mm:
70
Plattendicke (c) / mm:
20
Lochabstand (e) / mm:
100
Länge (Bolzen) (k):
95
Durchmesser (Bolzen) (g):
35
Gewicht:
6.30
