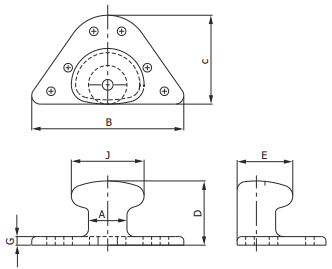

Trossenzug (kN) A B C D E G J Gewicht (kg) Werkstoff
Kantenpoller 50kN 50 140 710 415 300 260 40 340 93.00 EN-GJL-250
Kantenpoller 100kN 100 140 710 415 300 260 40 340 93.00 EN-GJL-250
Kantenpoller 150kN 150 140 710 415 300 260 40 340 93.00 EN-GJL-250
Kantenpoller 200kN 200 140 710 415 300 260 40 340 93.00 EN-GJL-250 +(GJL-400)
Kantenpoller 300kN 300 140 710 415 300 260 55 340 122.00 EN-GJS-400-15

Alle Berechnungen und Werte unterliegen der Bemessungsverantwortung des Kunden.
