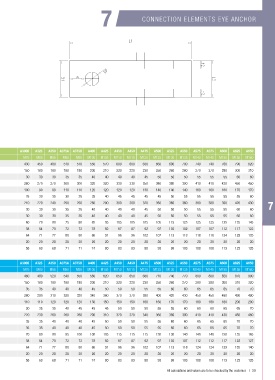

7 CONNECTION ELEMENTS EYE ANCHOR

A150 A175 A200 A200 A225 A225 A225 A250 A275 A300A A300B A325 A350 A375A A375B A400 A425 A450 A450 A475 A500 A525 A550 A575 A575 A600 A625 A650
ASF355-Anchor force to DIN EN 1993-5 - kt 0,6
M39 M42 M45 M48 M52 M56 M60 M64 M68 M72 M76 M80 M85 M90 M95 M100 M105 M110 M115 M120 M125 M130 M135 M140 M145 M150 M155 M160
Length plate 1 L1 mm 250 280 300 300 330 330 330 370 390 420 430 450 480 510 510 550 570 600 600 630 660 690 700 740 740 760 790 820
Width plate 1 B1 mm 80 90 100 100 110 110 110 130 140 150 150 160 180 180 180 200 210 220 220 230 250 260 260 270 270 280 300 310
Thickness plate 1 t1 mm 15 15 20 20 20 20 20 25 25 25 30 30 30 35 35 40 40 40 40 45 50 50 50 55 55 55 60 60
Length plate 2 L2 mm 180 180 210 210 210 210 210 230 240 240 260 270 270 300 300 320 320 330 330 350 380 380 390 410 410 420 450 450
Width plate 2 B2 mm 50 60 70 70 70 70 70 80 80 90 100 90 90 110 110 120 120 120 120 130 140 140 140 160 160 160 170 170
Thickness plate 2 t2 mm 10 15 15 15 20 20 20 20 25 25 25 30 35 30 35 35 40 45 45 45 45 50 55 55 55 55 55 60
Length strut L3 mm 110 120 140 140 150 150 150 180 190 200 210 220 240 250 250 280 290 300 300 320 350 360 360 380 380 390 420 430
Width strut t3 mm 15 15 20 20 20 20 20 25 25 25 30 30 30 35 35 40 40 40 40 45 50 50 50 55 55 55 60 60
Height strut B3 mm 15 15 20 20 20 20 20 25 25 25 30 30 30 35 35 40 40 40 40 45 50 50 50 55 55 55 60 60
Length P mm 25 35 35 35 50 50 50 50 55 60 60 70 80 75 80 85 95 105 105 105 105 115 125 125 125 135 135 145
Hole diameter d0 mm 32 35 38 38 42 42 42 49 54 58 58 64 70 72 72 78 82 87 87 92 97 102 102 107 107 112 117 122
Hole spacing a mm 36 39 42 42 47 47 47 54 60 64 64 71 77 80 80 86 91 96 96 102 107 113 113 118 118 124 129 135
Spacing K mm 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20
Spacing between plate 1 M mm 33 38 41 41 47 47 47 50 55 58 58 63 68 71 71 74 80 83 83 88 93 98 103 108 108 113 123 128

A150 A175 A200 A200 A225 A225 A225 A250 A275 A300A A300B A325 A350 A375A A375B A400 A425 A450 A450 A475 A500 A525 A550 A575 A575 A600 A625 A650
ASF500-Anchor force to DIN EN 1993-5 - kt 0,6
M39 M42 M45 M48 M52 M56 M60 M64 M68 M72 M76 M80 M85 M90 M95 M100 M105 M110 M115 M120 M125 M130 M135 M140 M145 M150 M155 M160
Length plate 1 L1 mm 250 290 310 310 350 350 350 380 420 440 460 480 520 540 550 580 620 650 650 680 710 740 770 800 800 820 870 900
Width plate 1 B1 mm 80 90 100 100 110 110 110 130 140 150 150 160 180 180 180 200 210 220 220 230 250 260 270 280 280 300 310 320
Thickness plate 1 t1 mm 15 20 20 20 25 25 25 25 30 30 35 35 40 40 40 45 50 50 50 55 55 60 60 65 65 65 70 70
Length plate 2 L2 mm 180 200 210 210 230 230 230 230 260 260 280 290 310 320 320 340 360 370 370 390 400 420 430 450 450 460 490 490
Width plate 2 B2 mm 50 70 70 70 80 80 80 80 100 100 110 110 120 120 120 130 150 150 150 160 160 170 170 180 180 180 200 200
Thickness plate 2 t2 mm 15 15 20 20 25 25 25 30 25 30 30 35 35 40 45 45 45 50 50 50 55 55 60 60 60 65 65 70
Length strut L3 mm 110 130 140 140 160 160 160 180 200 210 220 230 260 260 260 290 310 320 320 340 360 380 390 410 410 430 450 460
Width strut t3 mm 15 20 20 20 25 25 25 25 30 30 35 35 40 40 40 45 50 50 50 55 55 60 60 65 65 65 70 70
Height strut B3 mm 15 20 20 20 25 25 25 25 30 30 35 35 40 40 40 45 50 50 50 55 55 60 60 65 65 65 70 70
Length P mm 30 35 45 45 55 55 55 65 60 70 70 80 80 95 100 100 105 115 115 115 130 130 140 140 140 150 155 165
Hole diameter d0 mm 32 35 38 38 43 43 43 49 54 58 58 64 70 72 72 78 82 87 87 92 97 102 107 112 112 117 122 127
Hole spacing a mm 36 39 42 42 48 48 48 54 60 64 64 71 77 80 80 86 91 96 96 102 107 113 118 124 124 129 135 140
Spacing K mm 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20
Spacing between plate 1 M mm 33 38 41 41 47 47 47 50 55 58 58 63 68 71 71 74 80 83 83 88 93 98 103 108 108 113 123 128

All calculations and values are to be checked by the customer. | 59
