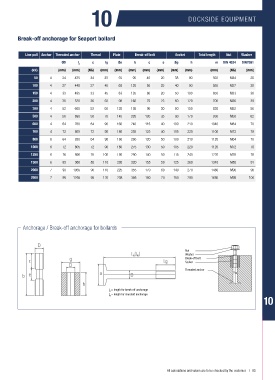

Page 85 - ASF Katalog 2018 en

10 DOCKSIDE EQUIPMENT

Break-off anchorage for Seaport bollard

Line pull Anchor Threaded anchor Thread Plate Break-off bolt Socket Total length Nut Washer

ØD I c lg Øa b c e Øg h m DIN 4034 DIN7091
A
(kN) (mm) (mm) (NG) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (NG) (mm)
50 4 24 435 24 35 55 95 40 20 38 80 550 M24 26
100 4 27 440 27 40 68 120 50 25 40 90 580 M27 30
150 4 33 495 33 45 83 135 60 20 50 100 650 M33 36
200 4 36 520 36 50 98 160 75 25 60 120 700 M36 39
300 4 52 605 52 60 120 195 95 30 80 150 820 M52 56

500 4 56 690 56 70 145 220 105 35 90 170 930 M56 62
600 4 64 760 64 90 160 240 115 40 100 210 1040 M64 70
700 4 72 805 72 90 180 255 125 40 105 220 1100 M72 78
800 6 64 820 64 90 160 260 120 50 100 210 1120 M64 70
1000 6 72 805 72 90 180 275 130 50 105 220 1120 M72 78
1250 6 76 890 76 100 190 290 140 50 115 240 1220 M76 78
1500 6 85 980 85 110 205 320 155 50 125 260 1340 M85 91
2000 7 90 1065 90 110 225 355 170 60 140 270 1460 M90 96
2500 7 95 1255 95 120 238 385 180 70 150 290 1680 M95 100

Anchorage / Break-off anchorage for bollards

Nut
Washer
Break-off bolt
Socket
Threaded anchor

l = length for break-off anchorage
A
I = length for standard anchorage
N

All calculations and values are to be checked by the customer. | 85
