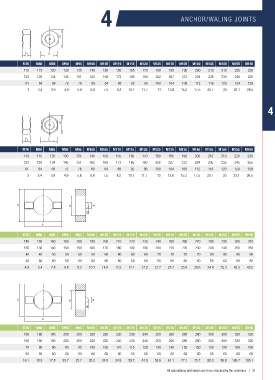

P. 31
4 ANCHOR/WALING JOINTS
ASF355 to ASF500 / ASF600 to ASF900 in class 10
Nominal diameter ØD1 Metric M39 M42 M45 M48 M52 M56 M60 M64 M68 M72 M76 M80 M85 M90 M95 M100 M105 M110 M115 M120 M125 M130 M135 M140 M145 M150 M155 M160
Width across flats s mm 60 65 70 75 80 85 90 95 100 105 110 115 120 130 135 145 150 155 165 170 180 185 190 200 210 210 220 230
Width across corners a mm 66 72 78 83 89 94 100 106 112 117 123 128 134 145 151 162 168 173 185 190 202 207 212 224 235 235 245 255
Height m mm 31 34 36 38 42 45 48 51 54 58 61 64 68 72 76 80 84 88 92 96 100 104 108 112 116 120 124 128
Weight kg 0.5 0.7 0.8 1 1.2 1.4 1.7 2 2.3 2.6 3 3.4 3.9 4.9 5.6 6.8 7.5 8.2 10.1 11.7 13 13.8 15.2 17.5 20.7 20 23.1 26.5
ASF355 to ASF500 / ASF600 to ASF900 in class 10
Nominal diameter ØD1 Metric M39 M42 M45 M48 M52 M56 M60 M64 M68 M72 M76 M80 M85 M90 M95 M100 M105 M110 M115 M120 M125 M130 M135 M140 M145 M150 M155 M160
Width across flats s mm 60 65 70 75 80 85 90 95 100 105 110 115 120 130 135 145 150 155 165 170 180 185 190 200 210 210 220 230
Width across corners a mm 66 72 78 83 89 94 100 106 112 117 123 128 134 145 151 162 168 173 185 190 202 207 212 224 235 235 245 255
Height m mm 31 34 36 38 42 45 48 51 54 58 61 64 68 72 76 80 84 88 92 96 100 104 108 112 116 120 124 128
Weight kg 0.5 0.7 0.8 1 1.2 1.4 1.7 2 2.3 2.6 3 3.4 3.9 4.9 5.6 6.8 7.5 8.2 10.1 11.7 13 13.8 15.2 17.5 20.7 20 23.1 26.5
Anchor ASF355 to EAU with kt 0,55 and Anchor ASF355 with kt 0,6 in S355
Nominal diameter ØD1 Metric M39 M42 M45 M48 M52 M56 M60 M64 M68 M72 M76 M80 M85 M90 M95 M100 M105 M110 M115 M120 M125 M130 M135 M140 M145 M150 M155 M160
Plate width b mm 80 90 90 100 100 110 120 120 130 140 140 150 160 180 180 190 200 210 220 230 240 250 260 270 280 290 300 310
Plate height h mm 70 80 80 90 90 100 110 110 120 120 130 130 140 150 150 160 170 180 190 190 200 210 220 230 240 240 250 250
Plate thickness t mm 20 30 30 30 30 30 40 40 40 40 40 40 50 50 50 50 60 60 60 60 70 70 70 70 80 80 90 90
Rocker s mm 50 50 50 50 50 50 50 50 50 50 50 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60
Weight kg 1.1 1.8 1.8 2.2 2.0 2.5 3.8 3.7 4.4 4.5 4.9 5.4 7.8 9.6 9.2 10.3 14.0 15.5 17.1 17.2 21.7 23.7 25.8 28.6 34.4 35.3 42.5 43.5
Anchor ASF355 to EAU with kt 0,55 and Anchor ASF355 with kt 0,6 in S355
Nominal diameter ØD1 Metric M39 M42 M45 M48 M52 M56 M60 M64 M68 M72 M76 M80 M85 M90 M95 M100 M105 M110 M115 M120 M125 M130 M135 M140 M145 M150 M155 M160
Plate width b mm 100 110 110 120 130 150 150 150 160 160 180 180 180 200 200 220 220 220 230 240 250 260 280 280 300 300 320 320
Plate height h mm 100 110 110 120 130 150 150 150 160 160 180 180 180 200 200 220 220 220 230 240 250 260 280 280 300 300 320 320
Plate thickness t mm 35 40 40 45 45 50 55 60 65 65 70 80 80 85 95 100 105 110 115 120 130 140 150 150 150 150 160 160
Rocker s mm 50 50 50 50 50 50 50 50 50 50 50 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60
Weight kg 2.9 3.9 3.8 5.0 5.8 8.6 9.2 9.7 11.9 11.7 16.1 18.3 17.8 23.7 25.7 33.2 34.0 34.8 39.7 44.9 52.6 61.1 77.1 75.7 88.3 86.8 106.7 105.1
All calculations and values are to be checked by the customer. | 31
