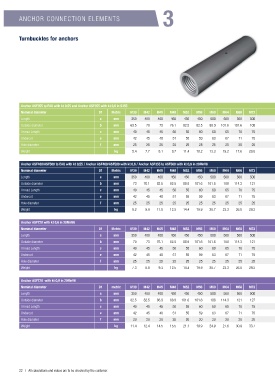

Page 22 - ASF Katalog 2018 en

3

ANCHOR CONNECTION ELEMENTS

Turnbuckles for anchors

Anchor ASF355 to EAU with kt 0,55 and Anchor ASF355 with kt 0,6 in S355
Nominal diameter D1 Metric M39 M42 M45 M48 M52 M56 M60 M64 M68 M72 M76 M80 M85 M90 M95 M100 M105 M110 M115 M120 M125 M130 M135 M140 M145 M150 M155 M160
Length a mm 350 400 400 450 450 450 500 500 500 500 550 550 550 550 550 550 550 550 550 550 550 550 550 550 550 550 550 550
Outside diameter b mm 63.5 70 73 76.1 82.5 82.5 88.9 101.6 101.6 108 114.3 114.3 121 127 133 139.7 152.4 152.4 159 165.1 177.8 177.8 191 193.7 203 216 216 219.1
Thread Length c mm 40 45 45 50 55 60 60 65 70 75 80 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160
Undercut e mm 42 45 48 51 55 59 63 67 71 75 79 83 88 93 98 103 108 113 118 123 128 133 138 143 148 153 158 163
Hole diameter f mm 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25
Weight kg 5.4 7.7 8.1 9.7 11.4 10.2 13.3 19.2 17.6 20.0 24.7 22.6 25.1 27.2 29.4 32.3 41.4 37.7 40.9 43.6 54.2 49.9 61.9 60.8 68.4 81.9 76.7 76.0

Anchor ASF460/ASF500 to EAU with kt 0,55 / Anchor ASF460/ASF500 with kt 0,6 / Anchor ASF355 to ASF500 with kt 0,9 in 20MnV6
Nominal diameter D1 Metric M39 M42 M45 M48 M52 M56 M60 M64 M68 M72 M76 M80 M85 M90 M95 M100 M105 M110 M115 M120 M125 M130 M135 M140 M145 M150 M155 M160
Length a mm 350 400 400 450 450 450 500 500 500 500 550 550 550 550 550 550 550 550 550 550 550 550 550 550 550 550 550 550
Outside diameter b mm 73 76.1 82.5 82.5 88.9 101.6 101.6 108 114.3 121 127 133 139.7 141.3 152.4 159 168.3 177.8 191 193.7 203 203 219.1 219.1 229 229 244.5 244.5
Thread Length c mm 40 45 45 50 55 60 60 65 70 75 80 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160
Undercut e mm 42 45 48 51 55 59 63 67 71 75 79 83 88 93 98 103 108 113 118 123 128 133 138 143 148 153 158 163
Hole diameter f mm 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25
Weight kg 8.2 9.9 11.8 12.5 14.4 19.9 20.7 23.3 26.0 29.2 35.1 38.3 41.7 40.2 48.2 51.8 58.7 66.2 78.9 78.4 86.8 82.4 101.0 96.3 106.5 101.5 121.2 115.9

Anchor ASF720 with kt 0,6 in 20MnV6
Nominal diameter D1 Metric M39 M42 M45 M48 M52 M56 M60 M64 M68 M72 M76 M80 M85 M90 M95 M100 M105 M110 M115 M120 M125 M130 M135 M140 M145 M150 M155 M160
Length a mm 350 400 400 450 450 450 500 500 500 500 550 550 550 550 550 550 550 550 550 550 550 550 550 550 550 550 550 550
Outside diameter b mm 70 73 76.1 82.5 88.9 101.6 101.6 108 114.3 121 127 133 139.7 141.3 152.4 159 168.3 177.8 191 193.7 203 203 219.1 219.1 229 229 244.5 244.5
Thread Length c mm 40 45 45 50 55 60 60 65 70 75 80 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160
Undercut e mm 42 45 48 51 55 59 63 67 71 75 79 83 88 93 98 103 108 113 118 123 128 133 138 143 148 153 158 163
Hole diameter f mm 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25
Weight kg 7.3 8.8 9.3 12.5 14.4 19.9 20.7 23.3 26.0 29.2 35.1 38.3 41.7 40.2 48.2 51.8 58.7 66.2 78.9 78.4 86.8 82.4 101.0 96.3 106.5 101.5 121.2 115.9

Anchor ASF720 with kt 0,9 in 20MnV6
Nominal diameter D1 metric M39 M42 M45 M48 M52 M56 M60 M64 M68 M72 M76 M80 M85 M90 M95 M100 M105 M110 M115 M120 M125 M130 M135 M140 M145 M150 M155 M160
Length a mm 350 400 400 450 450 450 500 500 500 500 550 550 550 550 550 550 550 550 550 550 550 550 550 550 550 550 550 550
Outside diameter b mm 82.5 82.5 88.9 88.9 101.6 101.6 108 114.3 121 127 133 139.7 152.4 159 165.1 168.3 177.8 191 193.7 203 216 219.1 229 244.5 244.5 273 273 273
Thread Length c mm 40 45 45 50 55 60 60 65 70 75 80 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160
Undercut e mm 42 45 48 51 55 59 63 67 71 75 79 83 88 93 98 103 108 113 118 123 128 133 138 143 148 153 158 163
Hole diameter f mm 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 25 25 25 25 25 25 25 25 25 25 25 25 25
Weight kg 11.4 12.4 14.5 15.5 21.1 19.9 24.9 27.6 30.9 33.7 40.4 44.5 54.3 58.3 61.8 62.1 69.8 82.7 82.4 90.9 105.2 105.5 116.0 136.2 131.4 176.4 171.3 165.9

22 | All calculations and values are to be checked by the customer.
